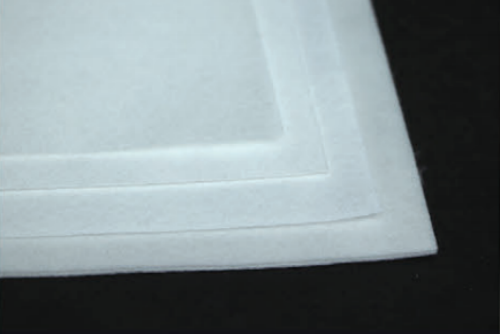

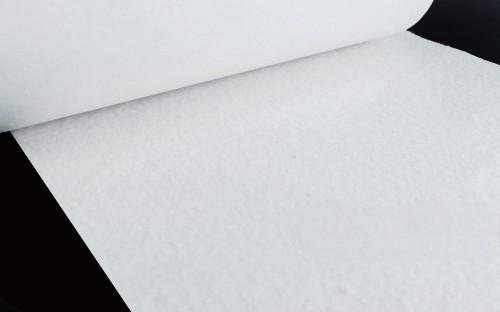

Polycrystalline Alumina Fibre Paper

Item No.: AFIBRE-003
FP polycrystalline alumina fiber paper is made primarily from polycrystalline alumina fibers combined with a binder. It features excellent flame retardancy, thermal insulation, electrical insulation, resistance to both high and low temperatures, and outst
Description
01 / PRODUCT DESCRIPTION

FP polycrystalline alumina fiber paper is made primarily from polycrystalline alumina fibers combined with a binder. It features excellent flame retardancy, thermal insulation, electrical insulation, resistance to both high and low temperatures, and outstanding aging resistance. The product is halogen-free, non-toxic, and odorless, with a high dielectric constant that provides effective thermal and fire protection.

It has an extremely low dusting rate. It can be used directly or encapsulated, and is widely applied in thermal insulation, fire protection, and electrical insulation for electrical equipment, electronic products, and battery cells.

Our product models are classified by thickness as follows: FP|003, 006, 008, 010, 020, 030, 040, 050.

02 / PRODUCT CHARACTERITICS
  • Excellent performance under both high and low temperatures, operating range: –200°C to 1300°C
  • Excellent electrical insulation and aging resistance
  • Outstanding thermal insulation performance
  • Excellent acid and alkali resistance, with strength retention above 90% after treatment with strong acids and alkalis
  • Low smoke, non-toxic, good flame retardancy, and compliant with EU ROHS Directive
03 / TABLE OF PRODUCT PERFORMANCE PARAMETERS
Performance FP003 FP006 FP008 FP010 FP020 FP030 FP040 FP050
Thickness (mm) 0.30 0.60 0.80 1.00 2.00 3.00 4.00 5.00
Range of thickness (mm) 0.25~0.35 0.50~0.70 0.70~0.90 0.90~1.10 1.80~2.20 2.70~3.30 3.60~4.40 4.50~5.50
Surface Density (g/m²) 20 60 80 100 250 400 550 700
Range of surface density (g/m²) 15-25 50~70 70~90 90~110 225~275 360-440 495-605 630~770
Test item Standard Technic index
Appearance Q/370500DHGX008-2023 Smooth and flat surface with no impurities
Insulating property 1000V DC Under condition of 1000V DC, test time 60s Insulation resistance≥500MΩ
Fiber ID Q/370500DHGX008-2023 5.5~7.5µm
Tensile strength GBT 17911-2018 ≥200kPa
Flame retardance property UL94-V0 Satisfy
Thermal conductivity GB/T 10297-2015 ≤0.04w/m·k
ELV EU ELV Directive 2000/53/EC Meet the limit requirements
04 / PRODUCT APPLICATION
Thermal insulation and fire protection for battery cells
Aerogel thermal insulation composite materials
Electrical insulation and flame retardancy for electronic products
Sealing materials for high-temperature equipment

Thermal insulation lining for furnace walls
